Cuplock Scaffolding On Hire / Rent
Scaffolding Engineers provide Cup-lock Scaffolding on hire / rent to construction companies. Being in Ahmedabad and Delhi we can serve Ahmedabad,Vadodara,Surat, Rajkot, Jamnagar, Bhavnagar, Bharuch, Ankleshwar, all part of Gujarat,Delhi,Noida, Faridabad, Gujgaon,all part of UP,Jaipur,Jodhpur,Udaypur,Ajmer,all parts of Rajasthan,Indore,Bhopal,Gwalior,all parts of MP. Iit is the quality of our products, timely services and the transparency in our dealings that have brought us to where we are today. Our esteemed clients and their repeated orders stand testimony to the quality of the products that we offer. Cup lock scaffolding is a very popular and versatile scaffolding system that is in use all over the world. The ease of handling, easy storage space requirements and high load bearing capacity are the main reasons for its immense popularity. Scaffolding Engineers Supplies Cup-lock Scaffolding System on rent / hire basis as per customer's requirement.

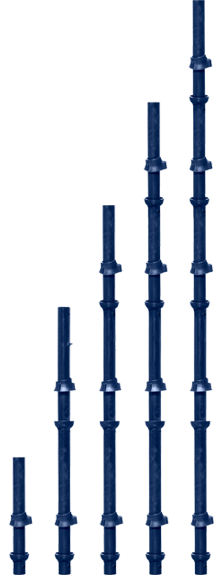

Scaffolding Standards
This is the name given to the vertical tubes. They are also known as uprights. Cup-lock standards are manufactured from 48.3mm O.D. tube. They have cup joints at 500mm intervals. The captive mobile top cups are designed to endure rough site handling and welded bottom cups are made from high-quality steel. Integral spigots are provided at the top of each standard for making vertical connections. The spigots and the base of each standard incorporate 11/16mm dia. holes to enable use of locking pins to join standards where necessary. Available sizes for Scaffolding Standards : 3.0m, 2.5m, 2.0m, 1.80m, 1.50m,1.30m & 1.0m
Scaffolding Ledgers
These are the horizontal tubes which run parallel to the building and are fixed to the standards. A row of ledgers is called a lift. The Ledgers are manufactured from 48.3mm O.D. tube with forged steel blade ends which locate into bottom cups of the standards and are locked in place by the corresponding top cups. Ledgers are available in various lengths to provide the desired grid dimension for scaffolding or formwork.
Available sizes for Scaffolding Ledger: 2.50m, 1.80m, 1.60m, 1.30m, 1.20m,
1.0m, 0.9m & 0.60m
Cuplock Transom
Transoms are fabricated from twin structural angles fixed back to back with a drop forged blade attached to each end. The 1.8m and above Transom has an additional web member welded below the flange section for added strength. The transom blade locates into a bottom cup and is locked in position by the top cup. The outward standing bottom leg of the angles supports the steel planks in a captive manner. Available in various lengths to suit scaffolding and formwork applications.

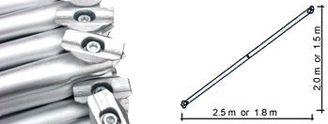

Cuplock Bracing
For diagonal bracing of scaffolding a range of longitudinal braces made with swivel forged blades at either ends to be fitted into cups of Cup lock standards are available.
